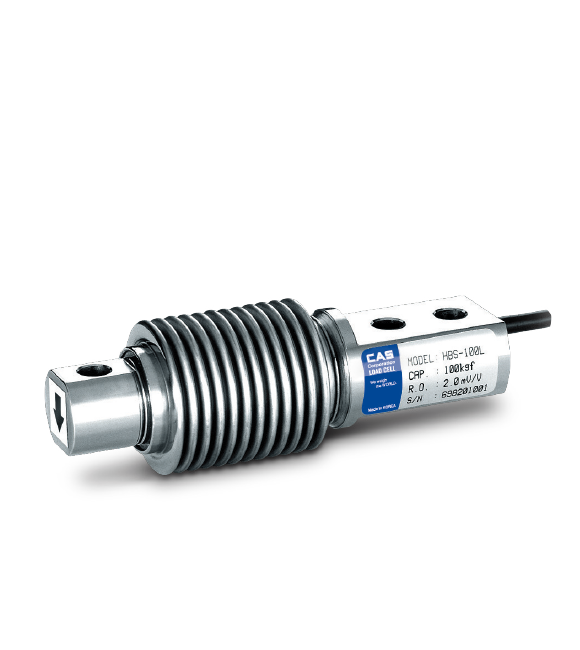

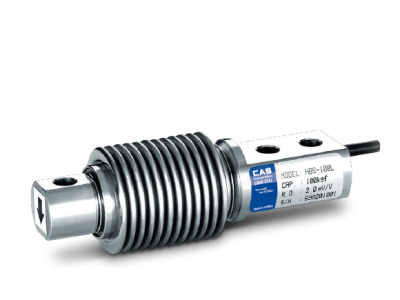

韓國凱士CAS HBS波紋管稱重傳感器

立即訂購

FEATURES? All stainless steel construction? OIML C3 approved? Option : Ex ia IIC T6 approved (20~500kgf)? Protection class IP67 ACCESSORY OPTION? Ball Type AccessoryCABLE COLOR CODESPECIFICATIONMax.

品牌：韓國凱士CAS
系列： HBS
型號： HBS-10,HBS-20,HBS-50,HBS-100,HBS-200,HBS-250,HBS-500,HBS-1K,HBS-2K

訂購熱線

0551-65222217

FEATURES

? All stainless steel construction

? OIML C3 approved

? Option : Ex ia IIC T6 approved (20~500kgf)

? Protection class IP67

ACCESSORY OPTION

? Ball Type Accessory

CABLE COLOR CODE

SPECIFICATION

Max. Capacity ( Rated Load )

kgf

10, 20, 50, 100, 200, 500, 1K, 2K

Rated Output

Zero Balance

mV/V

2.0 ± 0.005

0.0±0.02

Accuracy Class

Non-Linearity

Hysteresis

Combined Error

Repeatability

Creep for 30min.

Return for 30min.

Resolution

Division

% R.O.

mV/V

0.03

0.01

0.03

<1/3000

0.00067

0.02

0.01

0.017

<1/5000

0.0002

Temperature Effect on

Zero Value

Output Value

%/10℃

0.028

0.015

0.014

0.011

Excitation

Recommended

Maximum

V V

Resistance

Input

Output

Insulation

Ω Ω Ω

400±20

350±3.5

> 2000

Compensated Temperature Range

Operating Temperature Range

℃

-10 to +40

-30 to +80

Material & Plate

Stainless Steel, Buffing

Cable Specification

Φ5.4 × 4P × 3m ( Urethane )

Safety Overload

% R.L.

150% R.L.

Platform Size

Without Limit
